How does wireless charging work?

Tired of plugging in cables, especially fumbling for the port in the dark? Wireless charging pads look sleek and simple, but how exactly do they beam power to your phone without any physical connection?

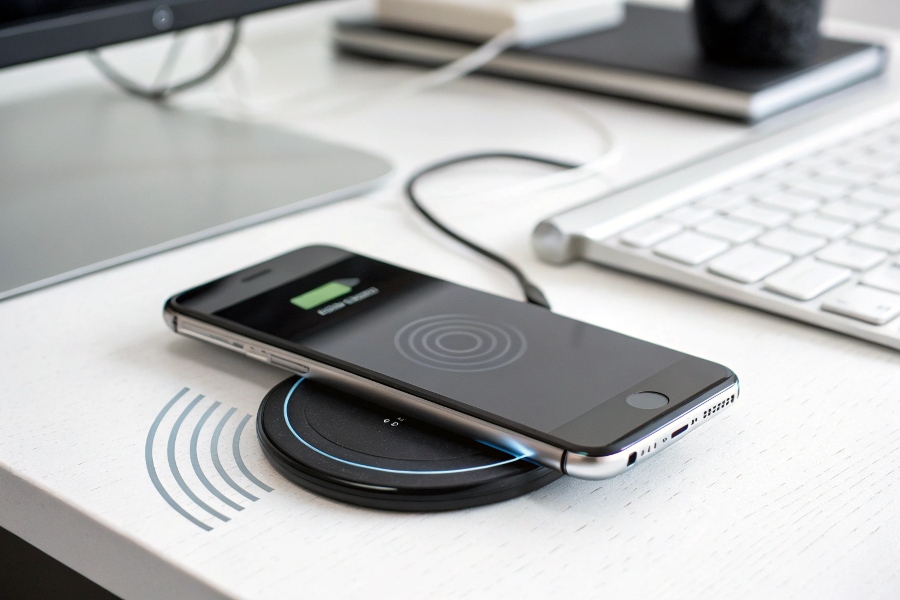

Wireless charging primarily uses electromagnetic induction. A transmitter coil inside the charging pad creates a changing magnetic field when powered, and a receiver coil inside your compatible device converts this magnetic field back into electrical current to charge the battery.

It sounds a bit like science fiction, doesn’t it? But it’s based on real physics principles that have been understood for over a century. As someone who works with charging technology every day at FUMEI, including exploring wireless options, I find it fascinating how we package this old science into convenient modern gadgets. Let’s look closer at the process.

Isn’t it just some kind of magic or complicated radio wave?

Seeing your phone light up just by placing it down feels futuristic, almost magical. It’s easy to wonder if it’s using complex radio signals or something even stranger to send power through the air.

It’s not magic, and while it involves electromagnetic fields, it’s different from radio waves used for Wi-Fi or Bluetooth. It uses near-field inductive coupling – creating a short-range, non-radiative magnetic field between two specially matched coils.

The key is understanding a basic principle called Faraday’s Law of Induction. In simple terms, a changing magnetic field can create an electric current in a nearby wire coil. Wireless chargers exploit this directly.

The Science: Induction in Action

1. Powering the Pad: The charging pad gets power from a wall adapter (usually AC, converted to DC, then back to high-frequency AC by internal circuits).
2. Creating the Field: This high-frequency AC flows through the transmitter coil in the pad. This changing current generates a changing magnetic field in the immediate area around the coil.
3. Receiving the Field: When you place your phone (with its built-in receiver coil) onto the pad, this changing magnetic field passes through the phone’s coil.
4. Inducing Current: According to Faraday’s Law, the changing magnetic field induces an AC electrical current in the phone’s receiver coil.
5. Charging the Battery: The phone’s internal circuitry takes this induced AC¹, converts it back into DC (Direct Current, which batteries use), and uses it to charge the battery.

Think of it like a transformer where the two halves (the coils) are physically separated by a small gap instead of being wound around the same core. This energy transfer is efficient only over very short distances (millimeters), which is why you need to place the device directly on the pad.

What are the key parts involved in making this work?

Knowing it uses coils and magnetic fields is one thing. But what are the actual physical components inside that sleek pad and your thin phone that handle this invisible energy transfer?

The two essential sets of components are the charging pad (transmitter) containing electronics and a transmitter coil, and the compatible device (receiver) housing a receiver coil along with power conversion and charging management circuits.

These parts need to work together seamlessly and safely. Let’s identify the main players on each side.

Inside the Charging Pad (Transmitter)

• Power Input: A port (like USB-C or a dedicated barrel connector) to receive power from a wall adapter.
• Control Circuitry: This is the "brain." It manages the power, often communicates with the device (using the Qi² standard, more on that later), detects if a compatible device is present, and ensures safe operation. It includes an oscillator to generate the necessary high-frequency AC for the coil.
• Transmitter Coil: A flat, spiral coil of wire, carefully designed to generate the magnetic field efficiently when the high-frequency AC passes through it.

Inside the Device (Receiver)

• Receiver Coil: Another flat coil, designed to match the transmitter’s characteristics and efficiently capture the magnetic field to have a current induced within it.
• Rectifier Circuit: Converts the induced AC current from the coil into DC voltage.
• Charging Circuit / Power Management IC: Takes the rectified DC power, regulates it, manages the charging process for the battery (controlling speed, monitoring temperature), and communicates back to the pad if necessary (e.g., "charging complete" or "error detected").

Alignment between the transmitter and receiver coils is crucial for good power transfer efficiency. This is why you usually need to place the device in a specific spot on the pad.

Are there different wireless charging standards I need to know?

Okay, the tech involves matched coils. But seeing different brand names and logos raises a question: Do I need a specific brand of charger for my specific phone, or will any pad work?

Yes, standards are very important here. The most widely adopted global standard for wireless charging is Qi (pronounced "chee"). Using Qi-certified chargers and devices ensures they will work together safely and efficiently.

Imagine the early days of phone chargers before USB became common – every phone needed its own specific plug! Standards like Qi prevent that chaos in the wireless world.

Why Qi Matters

• Interoperability: Developed by the Wireless Power Consortium (WPC), Qi ensures that a Qi-certified phone (like most modern iPhones and Android flagships) will charge on any Qi-certified pad, regardless of brand. This is huge for convenience. As a buyer like David knows, sourcing standardized products makes life much easier.
• Safety: Qi isn’t just about power transfer. It includes communication protocols between the pad and the device. This allows the device to tell the pad how much power it needs, to signal when it’s fully charged, or to tell the pad to shut down if it detects overheating or a foreign object (like keys or coins) on the pad, which could heat up dangerously.
• Power Levels: Qi supports different power levels. The Basic Power Profile (BPP) typically delivers around 5W. The Extended Power Profile (EPP) allows for faster charging, often up to 15W, though the exact speed depends on both the charger and the device capabilities.
• Proprietary Extensions: Some companies build upon Qi. Apple’s MagSafe for iPhone uses magnets for precise alignment (improving efficiency) and incorporates Qi charging, potentially enabling faster speeds through proprietary communication alongside the standard Qi protocols. Some other brands have also had proprietary fast wireless modes, but Qi is the universal baseline.

So, when buying a wireless charger or checking if your phone supports it, looking for the Qi logo is the easiest way to ensure compatibility and safety.

Conclusion

Wireless charging works using electromagnetic induction between coils in a pad and your device. Governed mainly by the Qi standard, it offers a convenient, cable-free way to power up your gadgets by simply placing them down.
